Quick Details

  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: Chuangrui
  • Model Number: GS600
  • Theory: Rotary Pump
  • Structure: peristaltic pump
  • Usage: liquid filling
  • Power: Electric
  • Standard or Nonstandard: Standard
  • Fuel: Electric
  • Pressure: Low Pressure
  • Application: liquid filling
  • Drive: GS600
  • Display: 4.3 inch touch screen
  • Pump head: YZ1515x
  • Rotating speed: 0.1-600 rpm,reversible
  • Tubing: Silicone tube
  • Channel: 4/8/12/16
  • Pump head material: PESU
  • Roller material: 304sss
  • Demesion: 706*250*186mm
  • Weight: 21.8KG

Packaging & Delivery

Packaging Details Reliable thick foam wrapped, standard export carton, waterproof film
Delivery Time 5 days

 The Operation Video of GS600

https://www.youtube.com/watch?v=pSRFcpjUNNk

Product Description

fluid dispensing systems  intrduction

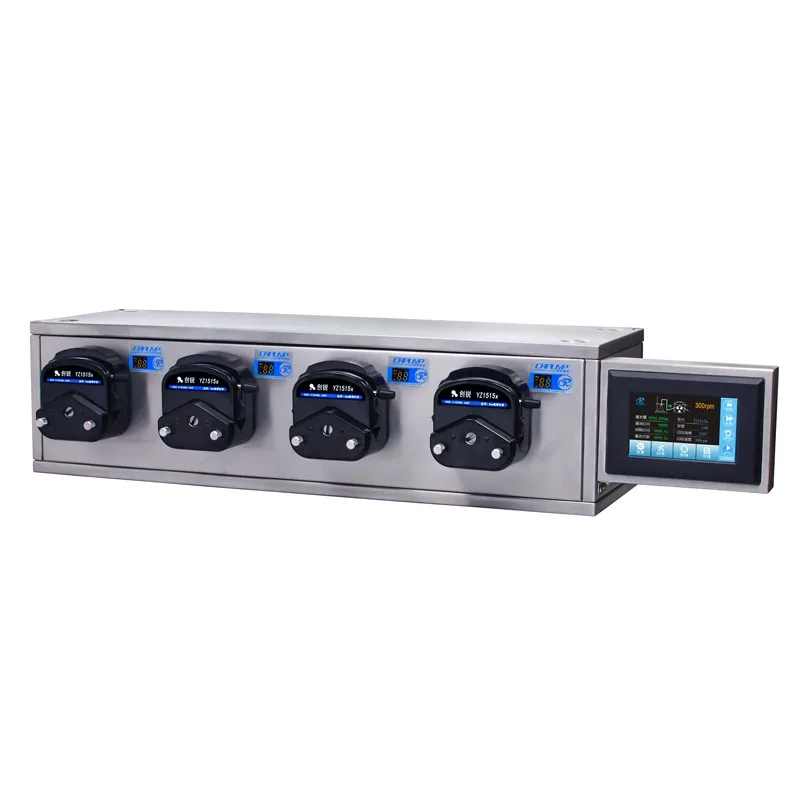

GS series integrated intelligent filling system, constituted by control units and integrated filling units. Each group have 4 filling units, one standard control unit can operate four groups, total 16 filling units.

*This system adopts industrial true-color 4.3 inches digital screen, touch screen controlling. To preset infusion volume, working time, interval time, filling frequency, back suction angle are available.

*Dynamic displaying working states, filling data, default parameters, system configuration at the same time; with intelligent calibration and online fine tuning functions. And it can be connected by foot switches or receiving the signal switch, to realize the long-range control.

*Unique motor running state output signal, make it available for other equipments to monitor the filling status at any time. We attach great importance to the customer experience.

*Suitable for non-pollution and high precision of fluid filling, the filling precision could reach +/- 0.5.



Full speed button: for filling in or emptying out the tubing quickly.

Steering button: to adjust the forward and reverse operation of the system.

Start button: large button design, easy to operate.







Can run with 16 pcs peristaltic pump .



 Dear All ,

Welcome to our website ,wish you have a nice day and will get the harvest from us .=))

To help you choose the suitable pump. can you help me to confirm some details as below :

1,what's the application of the pump ? bottle filling or constant transfer ?

2,what kind of liquid you will transfer ? does it corrosive ? does it can flow as water ?

3, for constant transfer ,what's flowrate you need? ml/min

4, for bottle filling ,what's your bottle's volume ? ml How many bottles you want to filling in 1 min ?

Pls send these answers or most details to us, then we will help u to choose the best pump and tube .

Thanks for your time .

Contact : Ella Xu

whatsapp :+0086 15633705132 skype : ella-crpump QQ :507183200



Contact us





Packaging & Shipping

Shipping

Packing



Certifications



Application

Commercial Dishwashing / Chemical Dispensing- Vending Machine / Post Mix Syrups- Beverage Dispensing / Dispense juice, chocolate, etc.- Refrigeration / Condensate Removal- Analytical / Fluid Transfer, Wastes- Commercial Exercise Eqpt. / Lubrication- Grease Trap Control / Timed Dispense of Enzymes- Fluid Sampling / Water Sampling, DC Powered- Water Conditioning / Chlorination/PH control









Our Services

Our peristaltic pump with 1 year warrenty and lifetime maintenance.

We can do the OEM PERISTALTIC PUMP as your special requirements.



FAQ



Question 1: Can I order custom peristaltic pump with my own design & logo?

Answer: Definitely yes.



Question 2Can I order a sample first before mass production? How can I place a sample order?

Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.



Question 3: How soon can I get a sample made? How can I make payment?

Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.



Question 4: How can I get my peristaltic pump if I place the order to you?
Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.

Question 5: Can I buy the tube separately?

Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.



Pls contact Ella Xu.0086-15633705132 or leave message to us.We will reply u asap we get it.

And other question, pls feel free to contact me.
