Quick Details

  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: Chuangrui
  • Model Number: BT600FC/YZ1515X
  • Theory: peristaltic pump
  • Structure: peristaltic pump
  • Usage: Lotion , Toner Liquid Dispeninng
  • Power: Electric
  • Standard or Nonstandard: Standard
  • Fuel: Electric
  • Pressure: Low Pressure
  • Application: E Liquid Dispensing
  • Product name: Hot Sale E Liquid VG &PG Dipesning Peristaltic Pump
  • Applicable pump head: YZ1515X, YZ2515X, KZ25
  • Rotating speed: 0.1~600rpm
  • Speed Resolution: 0.1rpm
  • Flowrate range: 0.0015~2280ml/min
  • Power supply: AC220v or AC110v
  • Distribution number: 0~9999
  • Distribution time: 0.1s~9999min
  • Cargo name: Dispensing Peristaltic Pump
  • Suction angel: 10°~720°(1 ° Step)

Packaging & Delivery

Packaging Details 1.1 set of peristaltic tubing pump/carton
2.Carton with plastic foam, make sure the peristaltic tubing pump is safe during shipping.
Delivery Time Shipped in 5-7 days after payment
Product Description

BT600FC /YZ1515X with flow 2280ml/min , provide precise flow control and dispensing , CR pump , easy -to -use touch screen peristaltic pump unit .

*Programmable options by volume, time, or scheduled delays between cycles to fullfill automate dispensing * Remote control option for user , ideal for automated process applications.

* Create quiet, high precision with stepper motor .

* Display English language menu.

*Optimize accuracy by calibrating the pump while in process and storing the calibration setting; one calibration per tubing size can be stored in the system's memory
.



Technical Parameters

Operation Panel

Customer can set all parameters in the screen

* Filling volume

*Stop time

*Filling tim

*Filling numbers ( times) .

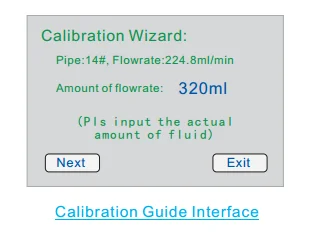

Calibration Function


In order to rise accuracy of dispensing , FC serise pump with calibration function .

when the pump replace a new hose , user can use calibration function to get the more precise volumw


Model
BT600FC
Speed
0.1-600 rpm
Speed Resolution
0.1 rpm
Flowrate
0.0015-2280ml/min
Display Mode
Touch screen dispaly
Number of  Dispensing
0-9999T
Dispensing Time
0.1s-9999min
Stop Time
0.1s-9999min
Suction Back Angle
10°-720°( 1° stepping )
Suction Speed
10-300rpm
External Control

Start&stop , direction , speed(  0-5v, 0-10v, 4-20mA, 0-10kHZ)

Communication protcol : RS485

Power Supply
AC220V±10% ( standard) or AC110V±10%
Drive Size
212*135*240mm
Drive Weight
4.8KG
Work Environment
0-40℃, <80% relative humidty, no cindensation
IP Rate
31
Pump Head
Tube Model
ID *OD (mm)
Speed ( rpm)
Flowrate ( ml/min)
YZ1515X
13#
0.8*4.0
600
42
14#
1.6*4.8
600
162
19#
2.4*5.6
600
306
16#
3.1*6.3
600
492
25#
4.8*8.0
600
1020
17#
6.4*9.6
600
1740
18#
7.9*11.2
600
2280
YZ2515X
15#
4.8*9.6
600
1020
24#
6.4*11.2
600
1740
KZ25
35#
7.9*12.7
600
5000
36#
9.6*14.4
600
6000
Order Guide

Dear All ,


Welcome to our website ,wish you have a nice day and will get the harvest from us .=))

To help you choose the suitable pump. can you help me to confirm some details as below :

1,what's the application of the pump ? bottle filling or constant transfer ?

2,what kind of liquid you will transfer ? does it corrosive ? does it can flow as water ?

3, for constant transfer ,what's flowrate you need? ml/min

4, for bottle filling ,what's your bottle's volume ? ml How many bottles you want

 to filling in 1 min ?

Pls send these answers or most details to us, then we will help u to choose the best pump and tube .

Thanks for your time .


Daisy yu


Skype : daisyyu5


Tel( whatsapp) :  +86 15930213220


Accesoory

FC dispensing pump we have accessoryfor you option:

1.Filling stand

2.Filling nozzles

Foot Pedal : can match for customer to control start & stop of pump .

Service &Warranty

1 year warranty & lifetime maintenance

Our company provide oversea customers 1 year warranty(do not include the silicone tube ) and

life time repair. Within the 1 year warranty ,Not man-made cause damage, our company will

provide free repair service. If beyond the warranty time, our company will only pay the maintenance

cost.


Package & Delivery

Package :


We use strong carton and will put foam to ensure the goods avoid damage during delivery .

Delivery


Air express such EMS, DHL, TNT ,UPS ect ,if you want to use other , please contct us .
