1.1 set of laboratory peristaltic pump/carton
2.Carton with plastic foam, make sure the laboratory peristaltic pump is safe during shipping
Tianjin ,Beijing ,Shanghai ,Guangzhou etc...
CR Peristaltic pumps
Automatic dosing system
Water treatment system
Laboratory precision transfer
With 3.5 inches capability enables products to transfer more accurate flow rates.
Four models of operation: transfer mode, timing mode, quantitative mode, timing quantitative mode,
304 stainless steel housing corrosion protection rust prevention and easy to be cleaning.

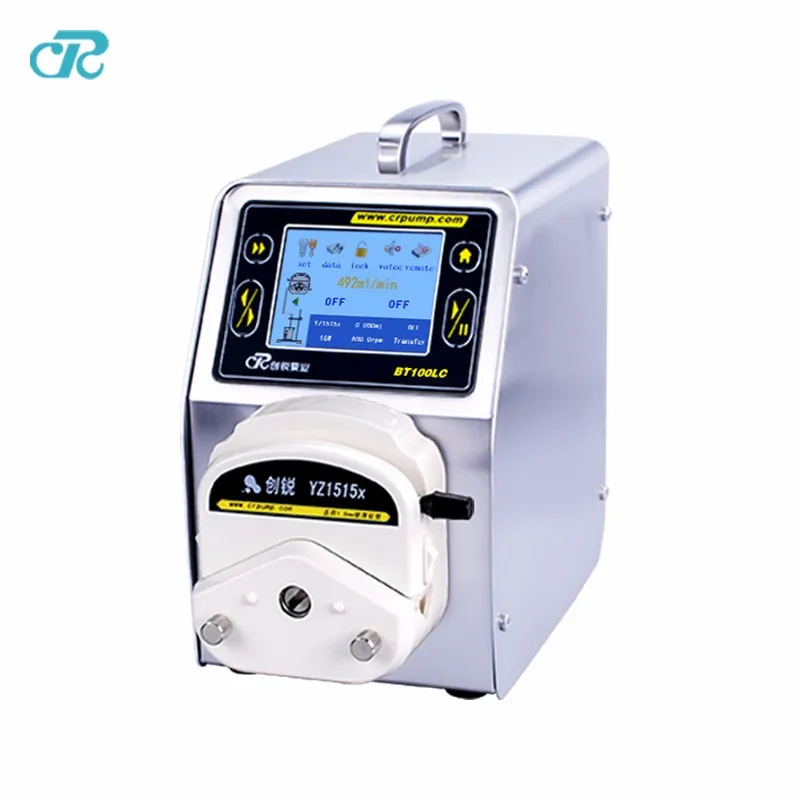

BT100LC/YZ1515x dosing peristaltic pumps
Pump head: YZ1515x Material of pump head: PPS/PESU Silicone tube: 13# 14# 16# 19# 25# 17# 18# Flowrate: 0.0015-380ml/min
0.1-100rpm is reversible
Speed control mode
Touch screen control
AC220V±10%(standard) or AC110V±10%(optional)
Temperature 0-40℃, relative humidity, no condensation
Start&stop, direction control, speed control(0-5v,0-10v,4-20mA optional)
RS232 and RS485, support MODBUS protocol mode
Peristaltic pumps tubing
1. The best way to select a tube is that to decide which materials are chemically suitable at first, and then choose the one which best meets the physical demands of the application. 2. For maximum tube life, use a large bore tube at low speed. For maximum flow rate use the largest tube at maximum speed. For maximum accuracy, use a small bore tube at maximum speed. 3. Suction lift depends on the tube restituting fully before the advance of the next roller. If it does not, the flow rate will be reduced. For maximum suction lift or pressure, use the smallest practicable bore size of tubing and run the pump at the slowest possible speed.
Tube material: Platinum vulcanized silicone.
Food Grade Silicone Tube For Liquid Transfer
Medical Grade Peristaltic Pump Silicone Tubing pipe hosing
Dear All ,
Welcome to our website ,wish you have a nice day and will get the harvest from us .=))
To help you choose the suitable pump. can you help me to confirm some details as below :
1,what's the application of the pump ? bottle filling or constant transfer ?
2,what kind of liquid you will transfer ? does it corrosive ? does it can flow as water ?
3, for constant transfer ,what's flowrate you need? ml/min
4, for bottle filling ,what's your bottle's volume ? ml How many bottles you want to filling in 1 min ?
Pls send these answers or most details to us, then we will help u to choose the best pump and tube .
Baoding chuangrui precision pump Co., LtdStarted production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump ..
We aim to "Produce CR pump to the easier life "
With 10 years professional experience of peristaltic pumps/peristaltic hose pumps/lab peristaltic pumps/industrial peristaltic pumps/peritaltic dosing pumps/chemical dosing pumps/peristaltic filling pumps/dispensing peristaltic pumps/OEM peristlatic pumps/ liquid transfer pumps etc. . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pumps, filling pump & system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.Our professional team can insure fluent communication, as well as perfect after-sale serviceChuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.
We often participate in a variety of trade fairs and our experience is very rich.We will certainly choose the products that meet your requirements.
We have professional support teams to assist with any queries you may have. Some frequently asked questions can be found below, however please do not hesitate to contact us with any specific questions.
Question 1: Can I order custom peristaltic pump with my own design & logo? Answer: Definitely yes.
Question 2: Can I order a sample first before mass production? How can I place a sample order? Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.
Question 3: How soon can I get a sample made? How can I make payment? Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.
Question 4: How can I get my peristaltic pump if I place the order to you? Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.
Question 5: Can I buy the tube separately? Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.
Package & Delivery
We use strong carton and will put foam to ensure the goods avoid damage during delivery.
Air express such as EMS, DHL, TNT, UPS etc. If you would like any other's, please contact us.
