10ml automatic bottle filling peristaltic pump price

FOB Reference Price:Get Latest Price
US $500-800 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Chuangrui
Model Number:
BT600FC
Theory:
peristalitc pump
Structure:
filling peristaltic pump
Usage:
e liquid filling
Power:
<50w
Standard or Nonstandard:
Standard
Fuel:
electric
Pressure:
Low Pressure
Application:
bottle filling peristaltic pump
Model:
BT600FC
Pump head:
YZ1515x YZ2515x
Rotation Speed:
0.1-600 Rpm
Flow rate:
0.007-2280 ml/min
Foot pedal:
Yes
Filling volume:
0.1 ml-9999L
Tube:
Silicon tube
Resolution:
0.1 rpm
Weight:
8 Kg
MOQ:
1 Set
Supply Ability
Supply Ability:
10000 Set/Sets per Month bottle filling peristaltic pump
Packaging & Delivery
Packaging Details
Reliable thick foam wrapped, standard export carton, waterproof film .
Also can make it depend on your requirement .
bottle filling peristaltic pump
Port
tianjin,beijing
Lead Time :
3-7 days
Video Description
Product Description

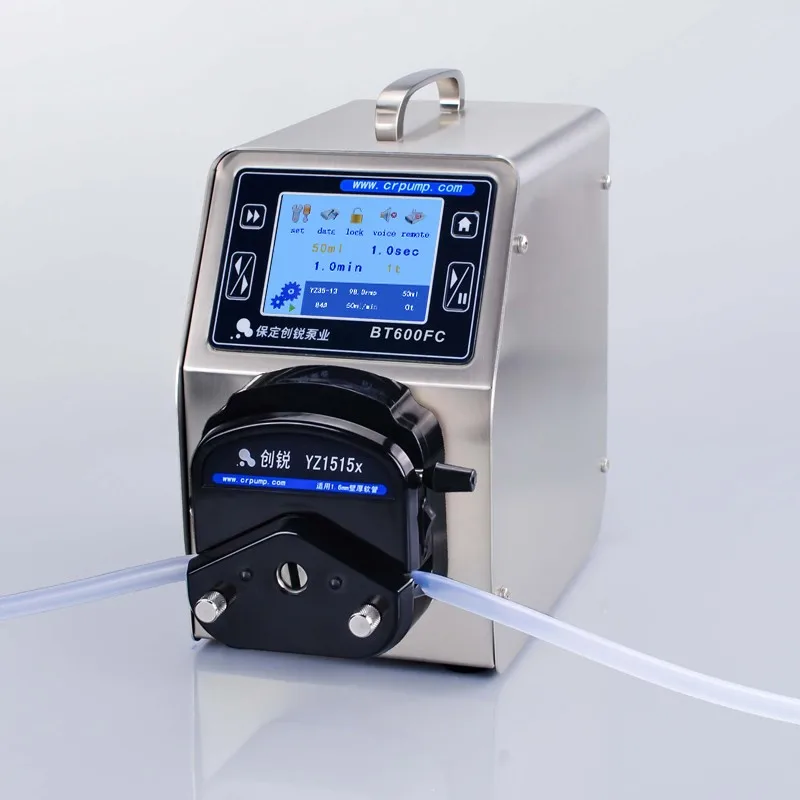

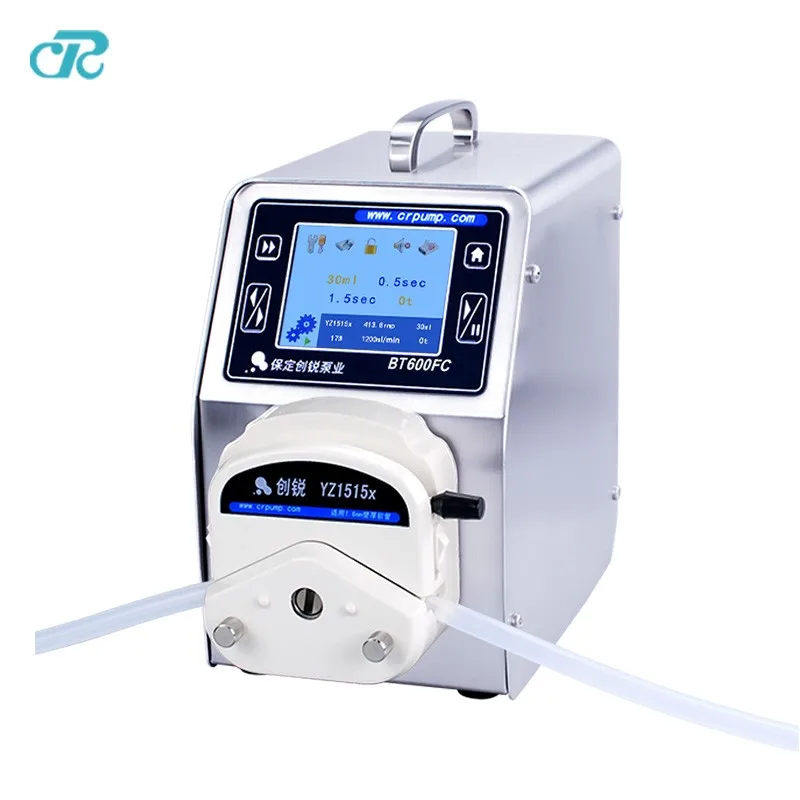

bottle filling peristaltic pump can be installed by YZ1515x, YZ2515x

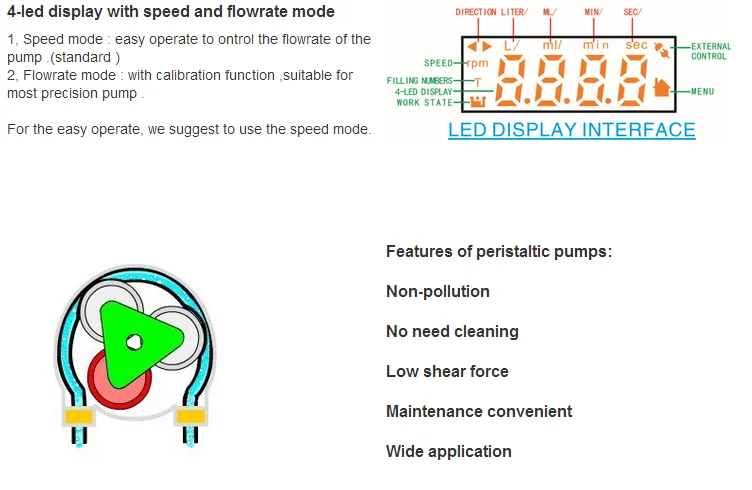

Ø TFT LCD touch screen display and intuitive control more convenient

Ø With flow calibration function, making the flow control is more precise for quantitative transmission fluid

Ø Large graphic LCD screen used in conjunction with the key switch, man-machine interface more friendly, more convenient for the user

Ø Have a communication interface, can provide users with communication protocols, in accordance with user's requirements to custom the PC software


Ø Higher cost performance


Brand: Chuangrui
Original: China

Non-pollution
No need cleaning
Low shear force
Maintenance convenient

Specification
bottle filling peristaltic pump SPECIFICATIONS







Driver - BT600FC
Speed
rpm
0.1-600
Flowrate
Ml/min
0.0015-2280
Display mode
LCD screen and display English and Chinese
Speed resolution
0.1rpm
speed control mode
Touch screen control
Timing range
0.1 seconds-9999minutes
Quantitative range
0.001ml-9999 liters
suction angle
10°-720°(1° Stepping)
External control
RS485 Serial communication
Power supply
AC110V/220V±10%

Peristaltic pump head
Type
Yz1515x
Housing material
PPS/PESU
The use of hose
13# 14# 19# 16# 25# 17# 18#
Tube For pump head MODEL ; YZ1515x
Tube
ID(mm)
Wall thickness(mm)
OD(mm)
Flow rate ml/min
13#
0.8
1.6
4
0.007-42
14#​​​​
1.6
1.6
4.8
0.027-162
19#
2.4
1.6
5.6
0.051-306
16#
3.1
1.6
6.3
0.082-492
25#
4.8
1.6
8
0.17-1020
17#
6.4
1.6
9.6
0.29-1740
18#
7.9
1.6
11.1
0.38-2280
Tube for peristaltic pump head   YZ2515x
Tube
ID(mm)
Wall thickness(mm)
OD(mm)
Flow rate(ml/min)
15#
4.8
2.4
9.6
0.17-1020
24#​​​​
6.4
2.4
11.2
0.29-1740

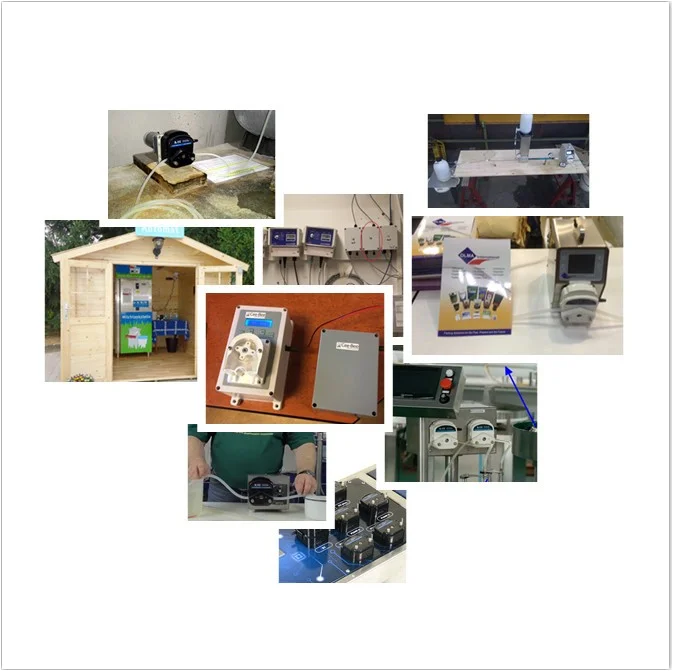

Application

1.e liquid /nail polish/food/juice/liquid drug/cosmetic dispensing

2.chemical dispensing

3.post mix syrups- beverage dispensing

4.dispense juice, chocolate, etc.- refrigeration

5.condensate removal-analytical


6.Fluid Transfer, wastes- Commercial Exercise Eqpt

7.Lubrication-Grease Trap Control

8.Timed dispense of Enzymes-Fluid Sampling

9. Water Sampling, DC Powered-Water Conditioning

10. Chlorination

11. PH Control

Related Products

BT600FC/YZ1515x

      Flow range : 0.007-2280 ml/min


BT300FC/YZ1515x

Flow range : 0.007-1140 ml/min


BT100FC/YZ1515x

Flow range : 0.007-380 ml/min


BG600FJ-S/YZ35-13

       flow range : 1.3-12000 ml/min


SG600FC/YZ35-13

  Flow range : 1.3-12000 ml/min


SG600FC/2*YZ35-13

 Flow range : 1.3-24000 ml/min


Order guide

Dear All ,

Welcome to our website ,wish you have a nice day and will get the harvest from us .=))

To help you choose the suitable pump. can you help me to confirm some details as below :

1,what's the application of the pump ? bottle filling or constant transfer ?

2,what kind of liquid you will transfer ? does it corrosive ? does it can flow as water ?

3, for constant transfer ,what's flowrate you need? ml/min

4, for bottle filling ,what's your bottle's volume ? ml How many bottles you want to filling in 1 min ?

Pls send these answers or most details to us, then we will help u to choose the best pump and tube .

Thanks for your time .
