alcohol transfer peristaltic pump

FOB Reference Price:Get Latest Price
US $100-700 / Piece | 1 Piece/Pieces Best Price Cell Culture Pharam Peristaltic Pump (Min. Order)
Supply Ability:
2000 Piece/Pieces per Month
Port:
Tianjin ,Beijing ,Guangzhou ,Shanghai etc...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Chuangrui
Model Number:
BT100LC
Theory:
peistaltic pump
Structure:
peistaltic pump
Usage:
Transmission
Power:
Electric
Standard or Nonstandard:
Standard
Fuel:
Electric
Pressure:
Low Pressure
Application:
Tranferring Liquid
Cargo Name:
alcohol transfer peristaltic pump
Speed range:
0.1-100 rpm reversible
Speed resolution:
0.1rpm
Timing range:
0.1s-9999min
Suction angle:
10° ~ 720° (1° stepping)
Power supply:
AC 90V ~ 260V 50Hz/60Hz
Power consumption:
<22W
External control interface:
Start/stop control, direction control, speed control.
Environment temperature:
0-40℃; Relative humidity <80%.
Packaging & Delivery
Packaging Details
1.1 set of alcohol transfer peristaltic pump/carton
2.Carton with plastic foam, make sure the alcohol transfer peristaltic pump is safe during shipping.
Delivery Time
Shipped in 3 days after payment
Product Description

alcohol transfer peristaltic pump


BT100LC  with 3.5 inches LCD screen , can set the parameters in screen . BT100M/YZ1515X flowrate is

range 0.0015-380ml/min . Multi apply in the field of cell culture and ferenment application.


Technical Parameters

Operation Panel

3.5 inches operation panel display all parameters you need

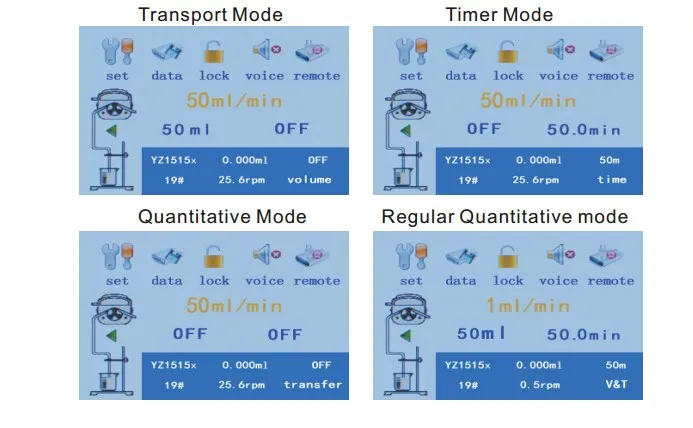

Four Modes Option

BT100LC seise have for modes for customer option:
*Transport mode

*Timer mode

*Quantitative mode

*Regular Quantitative mode

Mode
BT100LC
Speed
0.1-100rpm
Speed  Resolution
0.1 rpm
Display Mode
Touch Screen
Four Mode
Transport mode , Timer mode, Quantitative mode , Reular Quantitative Mode
Timing Range
0.1s-9999min
Quantitative Range
0.001ml-9999L
Suction Angle
10°-720°( 1° stepping )
External Control

Start &stop , Direction , Speed ( 0-5V, 0-10V 4-20mA ,0-10kHZ )

Communication Protocol : RS485

Power Supply
AC 90-260V 50HZ-60HZ
Power Consumption
<22W
Work Environment
0-40℃ , <80% relative humidity
Drive Size
212*135*240 mm
Model
Pump Head
Tube
Flowrate ( ml/min)
BT100LC
DG
0.5*0.8/1*1/2*1/3*1/2.4*0.8
0.005-45
BT100LC
YZ1515X
13# 14# 19# 16# 25# 17# 18#
0.0015-2280
BT100LC
YZ2515X
15# 24#
0.0015-1740
Pump Head
Tube Model
ID *OD (mm)
Speed ( rpm)
Flowrate ( ml/min)
YZ1515X
13#
0.8*4.0
100
7
14#
1.6*4.8
100
27
19#
2.4*5.6
100
51
16#
3.1*6.3
100
82
25#
4.8*8.0
100
170
17#
6.4*9.6
100
290
18#
7.9*11.1
100
380
YZ2515X
15#
4.8*9.6
100
170
24#
6.4*11.2
100
290
Why choose us

Baoding chuangrui precision pump Co., Ltd was founded in 2006, is now mainly engaged in the peristaltic pump research and development, production, marketing and related fluid precision control of the stepper motor, drives, controller of research and development, production and sales. Enterprise covers an area of more than 1000 square meters of modern production workshop, more than 50 sets of production equipment. At present, we have succeeded in bringing the ARM, DSP, FPGA, CPLD technology application in the research and development of new products, such as improving the comprehensive performance of the product.

We often participate in a variety of trade fairs and our experience is very rich.We will certainly choose the products that meet your requirements.


If you are interested, pls feel free to contact me. Whatsapp: +8615932139831

Please don't hesitate to contact me.


Order Guide

Dear All ,

Welcome to our website ,wish you have a nice day and will get the harvest from us .=))

To help you choose the suitable pump. can you help me to confirm some details as below :

1,what's the application of the pump ? bottle filling or constant transfer ?

2,what kind of liquid you will transfer ? does it corrosive ? does it can flow as water ?

3, for constant transfer ,what's flowrate you need? ml/min

4, for bottle filling ,what's your bottle's volume ? ml How many bottles you want to filling in 1 min ?

Pls send these answers or most details to us, then we will help u to choose the best pump and tube .

Thanks for your time .

Contact : Cindy Yang

Whatsapp: +8615932139831 QQ :3559199655


Warranty

1 year warranty & lifetime maintenance

Our company provide oversea customers 1 year warranty(do not include the silicone tube ) and life time repair. Within the 1 year warranty ,Not man-made cause damage, our company will provide free repair service. If beyond the warranty time, our company will only pay the maintenance cost.


Certificate

Related Products

OEM204/ZN25


OEM206/WP300


OEM208/KZ25


OEM201/YZ1515X


OEM200/YZ35-13


OEM210/WP500


Package & Delivery

Package details:

1.The product is carton with plastic foam.

2.Carton with plastic foam, make sure the product is safe during shipping.

3.The product can also be packed strictly according to the customer's requirements.


Delivery details:

1.Air express such as EMS, DHL, TNT, UPS etc. If you would like any other's, please contact us.

2.Shipped in 3-7 days after payment.
