Quick Details

  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: Chuangrui
  • Model Number: BT100LC/YZ1515x
  • Theory: peistaltic pump
  • Structure: peistaltic pump
  • Usage: Transmission
  • Power: Electric
  • Standard or Nonstandard: Standard
  • Fuel: Electric
  • Pressure: Low Pressure
  • Application: Liquid Trnasferring
  • Cargo Name: Pharma PH Control Peristaltic Pump
  • Speed range: 0.1-100 rpm reversible
  • Speed resolution: 0.1rpm
  • Timing range: 0.1s-9999min
  • Suction angle: 10° ~ 720° (1° stepping)
  • Power supply: AC 90V ~ 260V 50Hz/60Hz
  • Power consumption: <22W
  • External control interface: Start/stop control, direction control, speed control.
  • Environment temperature: 0-40℃; Relative humidity <80%.

Packaging & Delivery

Packaging Details 1.1 set of peristaltic tubing pump/carton
2.Carton with plastic foam, make sure the peristaltic tubing pump is safe during shipping.
Delivery Time Shipped in 3 days after payment
Product Description


BT100LC with 3.5 inches LCD screen apply to Fermentation Pharma field  , customer can set the parameters in screen .


Technical Parameters

Operation Panel

3.5 inches operation panel display all parameters you need


Four Modes Option

BT100LC seise have for modes for customer option:
*Transport mode

*Timer mode

*Quantitative mode

*Regular Quantitative mode

Mode
BT100LC
Speed
0.1-100rpm
Speed  Resolution
0.1 rpm
Display Mode
Touch Screen
Four Mode
Transport mode , Timer mode, Quantitative mode , Reular Quantitative Mode
Timing Range
0.1s-9999min
Quantitative Range
0.001ml-9999L
Suction Angle
10°-720°( 1° stepping )
External Control

Start &stop , Direction , Speed ( 0-5V, 0-10V 4-20mA ,0-10kHZ )

Communication Protocol : RS485

Power Supply
AC 90-260V 50HZ-60HZ
Power Consumption
<22W
Work Environment
0-40℃ , <80% relative humidity
Drive Size
212*135*240 mm
Model
Pump Head
Tube
Flowrate ( ml/min)
BT100LC
DG
0.5*0.8/1*1/2*1/3*1/2.4*0.8
0.005-45
BT100LC
YZ1515X
13# 14# 19# 16# 25# 17# 18#
0.0015-2280
BT100LC
YZ2515X
15# 24#
0.0015-1740
Pump Head
Tube Model
ID *OD (mm)
Speed ( rpm)
Flowrate ( ml/min)
YZ1515X
13#
0.8*4.0
100
7
14#
1.6*4.8
100
27
19#
2.4*5.6
100
51
16#
3.1*6.3
100
82
25#
4.8*8.0
100
170
17#
6.4*9.6
100
290
18#
7.9*11.1
100
380

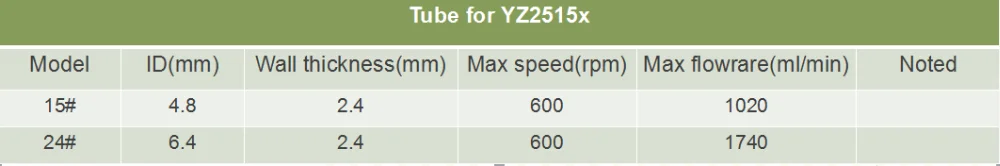

YZ2515X
15#
4.8*9.6
100
170
24#
6.4*11.2
100
290
Related Products

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

Service &Warranty

1 year warranty & lifetime maintenance

Our company provide oversea customers 1 year warranty(do not include the silicone tube ) and

life time repair. Within the 1 year warranty ,Not man-made cause damage, our company will

provide free repair service. If beyond the warranty time, our company will only pay the maintenance

cost.


Package & Delivery

Package :


We use strong carton and will put foam to ensure the goods avoid damage during delivery .

Delivery


Air express such EMS, DHL, TNT ,UPS ect ,if you want to use other , please contct us .

FAQ

Question 1: Can I order custom peristaltic pump with my own design & logo

Answer: Definitely yes.

Question 2: Can I order a sample first before mass production? How can I place a sample order?

Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.

Question 3: How soon can I get a sample made? How can I make payment?

Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.

Question 4: How can I get my peristaltic pump if I place the order to you?

Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.

Question 5: Can I buy the tube separately?

Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.
