Quick Details

  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: Chuangrui
  • Model Number: BT600M
  • Theory: peristaltic pump
  • Structure: Gear Pump
  • Usage: Water, oil, glycerin, drug, etc.
  • Power: <50W
  • Standard or Nonstandard: Standard
  • Fuel: Electric
  • Pressure: Low Pressure, 0.17mpa
  • Application: Dosing Peristaltic Pump
  • Pump Head: YZ1515x
  • Pump Housing Material: PPS/PESU
  • Roller Material: 304 Stainless steel
  • Rotating speed: 0.1~600rpm, reversible
  • Flow Rate Range: 0.0015~2280ml/min
  • Suitable Hose: 13# 14# 19# 16# 25# 17# 18#
  • Display Mode: 4-digit LED
  • Speed Contol Mode: Rotary Knob
  • Power Supply: AC220V±10% (Standard) / AC110V±10% (Optional)

Packaging & Delivery

Packaging Details Dosing Peristaltic Pump
1. The peristaltic pump is carton with plastic foam.
2. The peristaltic pump can also be packed strictly according to the customer's requirements.
Delivery Time The pump can be shipped within 3-7 days after payment.
Product Presentation

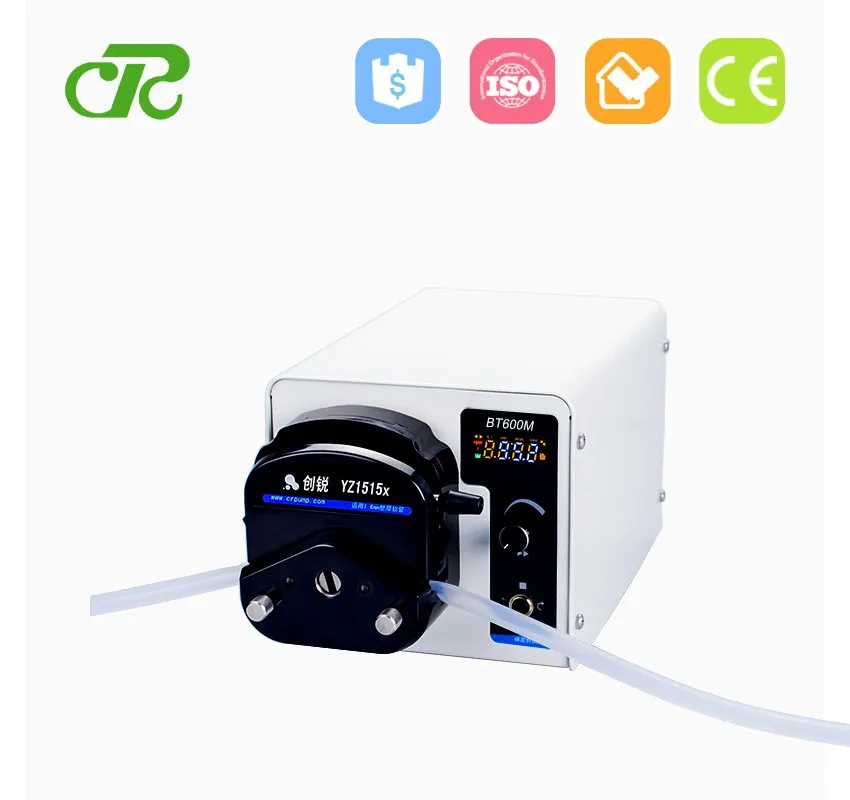

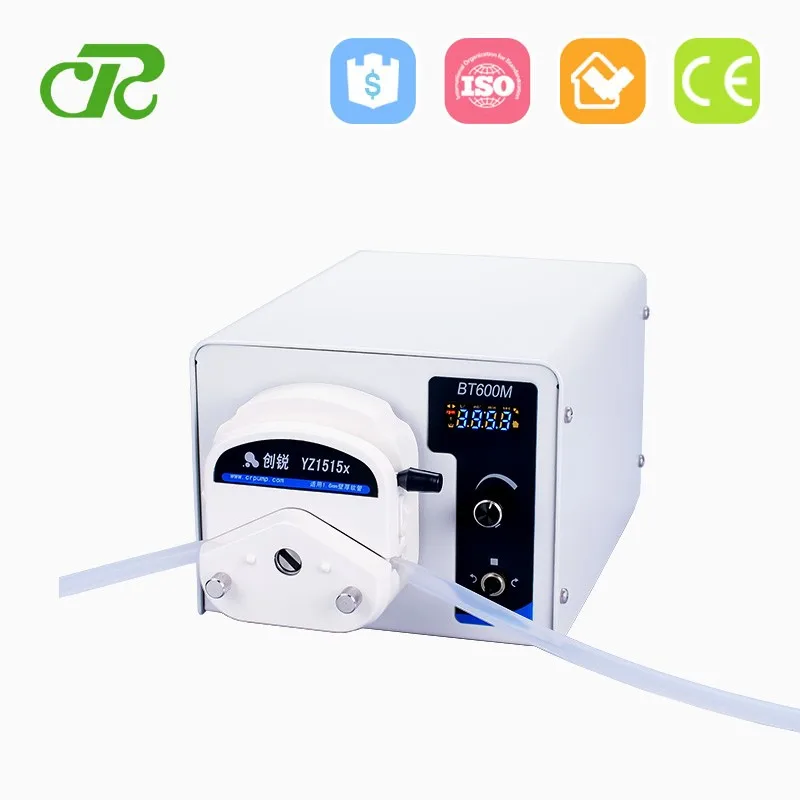

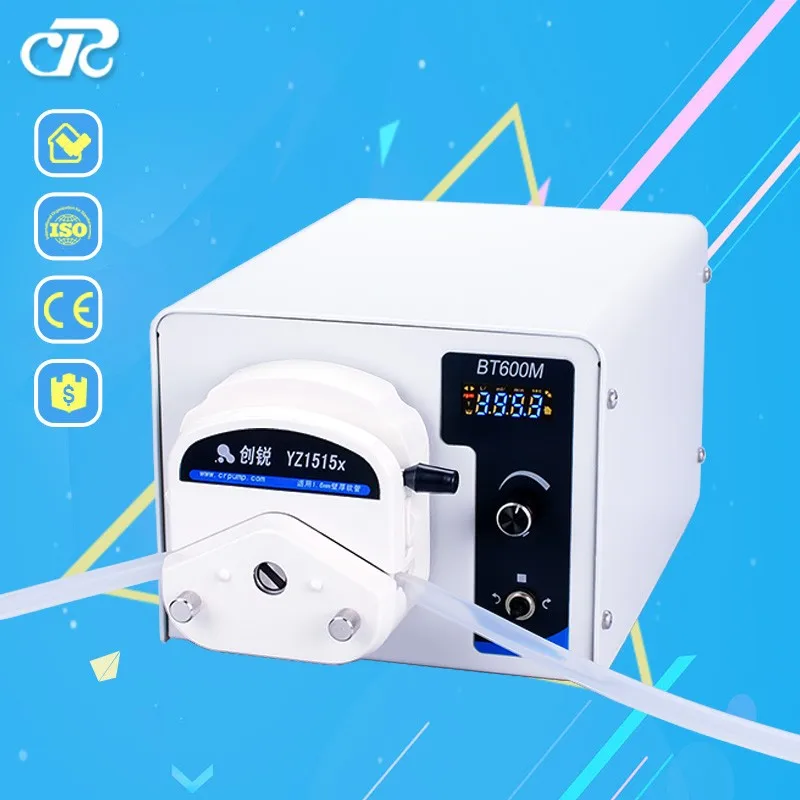

Dosing Peristaltic Pump

*This product can be installed by series pump heads, such as YZ1515x, YZ2515x, etc.


*With both-way large torque, low power motor. It can be connected with several pump heads to satisfy the different demands of flow rates.

*Long life, digital rotary knob, easy to operate,

*FULL SPEED button available for filling in & emptying out the tubing.

*Has RS485 communication interface, supports MODBUS communication protocol. And communication protocols customized is available.

4-LED Display

*Memory function available in case of power off and it will continue the work once the power was restarted.


*Long-range control is available through the DB15 interface of the drive: speed control, start-stop control, direction control.


*Good cost performance.

Features of peristaltic pumps:

1. Non-pollution

2. No need cleaning

3. Low shear force

4. Maintenance convenient

5. Wide application

Technical Parameters
Speed range
0.1~600rpm, reversible
Speed resolution
0.1rpm
Flow rate range
0.0015~2280ml/min
Flow accuracy
<0.5%
Speed control mode
Digital knob to adjust the speed
Display mode
4-LED display double mode-speed and flow rate
Power supply
AC220V±10% (Standard) / AC110V±10% (Optional)
Power
<50W
External control interface
Start/Stop, Direction, Speed control (Optional)
RS485 serial communication

Work environment
Temperature 0 to 40℃, relative humidity<80%, no condensation
Drive size
254*184*150 (mm)
Drive weight
4.7kg
IP rate
IP31
Drive
Pump Head
Tube
ID*OD (mm)
Max Flow Rate (ml/min)





BT600M
(Max Speed 600rpm)





YZ1515x
13#
0.8*4.0
42
14#
1.6*4.8
162
19#
2.4*5.6
306
16#
3.1*6.3
492
25#
4.8*8.0
1020
17#
6.4*9.6
1740
18#
7.9*11.1
2280

YZ2515x
15#
4.8*9.8
1020
24#
6.4*11.4
1740
Order Guide

Dear All,

Welcome to our website, wish you have a nice day and will get the harvest from us.

In order to help you choose the most suitable pump, pls kindly help us to confirm the following details in first, tks in advance!

1. What's the application of the pump? Bottle filling or constant transfer?

2. What kind of liquid you will transfer? Does it corrosive? Does it can flow as water?

3. For constant transfer, what's flowrate you need? (ml/min)

4. For bottle filling, what's your bottle's volume? (ml) How many bottles you want to filling in 1 min?

Pls kindly inform us the above answers or most details if u can, and then we will choose the best pump and tube for u.


Thanks & best regards,
Wendy Song



Warranty

1 year warranty & lifetime maintenance.

Our company provide oversea customers 1 year warranty (do not include the silicone tube) and life time repair. Within the 1 year warranty,not man-made cause damage, our company will provide free repair service. If beyond the warranty time, our company will only pay the maintenance cost.

Typical Application

1. Accurate measurement and ration feedstock, it could reach highest precision.

2. Transfer viscous liquid.

3. In food and medical care via changing the tube and material.



Application

Commercial Dishwashing / Chemical Dispensing-Vending Machine / Post Mix Syrups- Beverage Dispensing / Dispense juice, chocolate, etc. Refrigeration / Condensate Removal-Analytical / Fluid Transfer, Wastes-Commercial Exercise Eqpt. / Lubrication-Grease Trap Control / Timed Dispense of Enzymes-Fluid Sampling / Water Sampling, DC Powered-Water Conditioning / Chlorination/PH control.

Optional accessories

Foot pedal

To control the start and stop by hand or foot.

Filling stand

To hold the tube.
With 304 sss material.

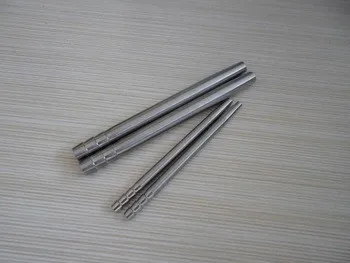

Filling needles

For the small size bottle
with 304sss material.




Baoding chuangrui precision pump Co., Ltd was founded in 2006, is now mainly engaged in the peristaltic pump research and development, production, marketing and related fluid precision control of the stepper motor, drives, controller of research and development, production and sales. Enterprise covers an area of more than 1000 square meters of modern production workshop, more than 50 sets of production equipment. At present, we have succeeded in bringing the ARM, DSP, FPGA, CPLD technology application in the research and development of new products, such as improving the comprehensive performance of the product.





Our Services

1. Our peristaltic pump with1 year warrenty and lifetime repair.

2. We can do the OEM PERISTALTIC PUMP according to your special requirements.


Certifications

Package & Delivery

Package

We use strong carton and will put foam to ensure the goods avoid damage during delivery.

Delivery

Air express such as EMS, DHL, TNT, UPS etc. If you would like any other's, please contact us.

FAQ

We have professional support teams to assist with any queries you may have.
Some frequently asked questions can be found below, however please do not hesitate to contact us with any specific questions.



Question 1: Can I order custom peristaltic pump with my own design & logo?

Answer: Definitely yes!



Question 2: Can I order a sample first before mass production? How can I place a sample order?

Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.



Question 3: How soon can I get a sample made? How can I make payment?

Answer: For simple design sample, it generally takes about 7~15days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test, etc. Payment can be made through T/T, paypal, Western Union, etc.



Question 4: How can I get my peristaltic pump if I place the order to you?

Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express ( DHL, Fedex, etc.). 100 or more, mostly by air or by sea.



Question 5: Can I buy the tube separately?

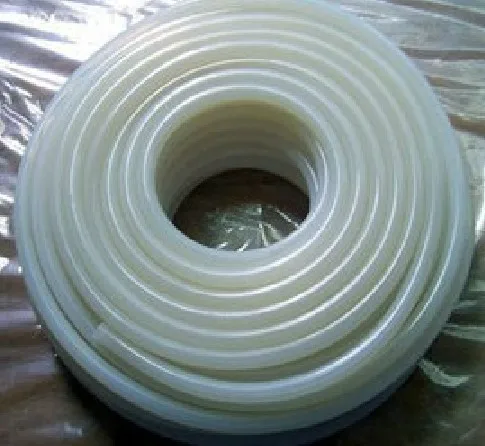

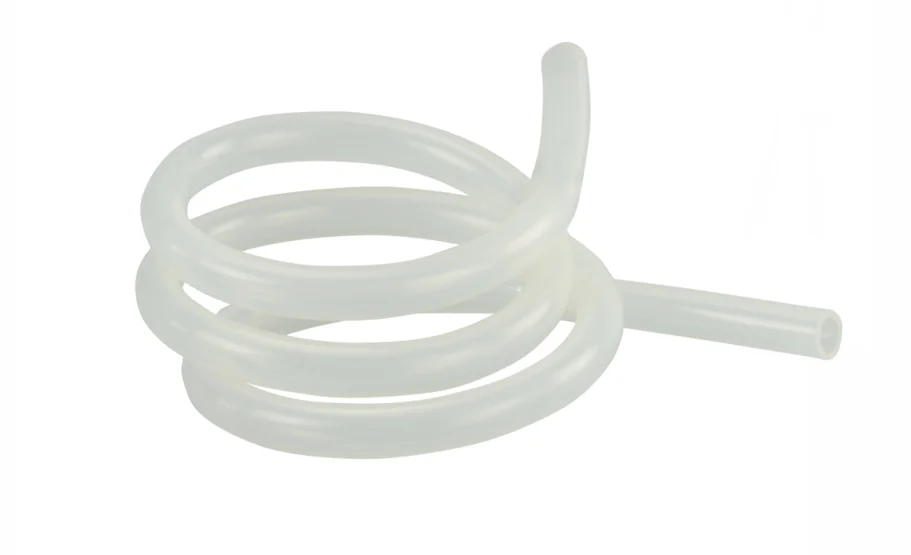

Answer: Of course Yes. For the silicon tube 15meter per roll. Or you can buy 1 or 2 meters. No problem.

More question, pls contact Wendy Song.
