Intestinal Lavage Metering Peristaltic Pump 4-digit LED Display

FOB Reference Price:Get Latest Price
US $400-700 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
2000 Set/Sets per Month
Port:
Tianjin, Beijing, Guangzhou, Shanghai, etc.
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Chuangrui
Model Number:
BT300M
Theory:
peristaltic pump
Structure:
Gear Pump
Usage:
Water, oil, glycerin, drug, etc.
Power:
<35W
Standard or Nonstandard:
Standard
Fuel:
Electric
Pressure:
Low Pressure, 0.17mpa
Application:
Transfer, lab, food canning, liquid canning, etc
Pump Head:
YZ1515x
Pump Head Color:
Black/white
Pump Housing Material:
PPS/PESU
Roller Material:
304 Stainless steel
Rotating speed:
0.1~300rpm, reversible
Flow Rate Range:
0.007~1140ml/min
Suitable Hose:
13# 14# 19# 16# 25# 17# 18#
Power Supply:
AC220V±10% (Standard) / AC110V±10% (Optional)
Warranty:
1 Year
Packaging & Delivery
Packaging Details
1. The peristaltic pump is carton with plastic foam.
2. The peristaltic pump can also be packed strictly according to the customer's requirements.
Delivery Time
The peristaltic pump can be shipped within 2 days after payment.
Product Description

Intestinal Lavage Metering Peristaltic Pump

4-digit LED Display

This product can be installed four kinds of pump heads, such as YZ1515x, YZ2515x, with flow rate of 0.007~1140ml/min.


Flowrate and speed can be adjusted either by hand rotary knobs, instead of the traditional membrane keypad, which reduces the failure rate obviously; or by automatic control through the external controller interface, with three available modes: 0-5V, 0-10V and 4-20mA.


Memory function is also available in the product if power off.


Besides, switching knobs are designed clearly, so that it is easy to operate for customers.

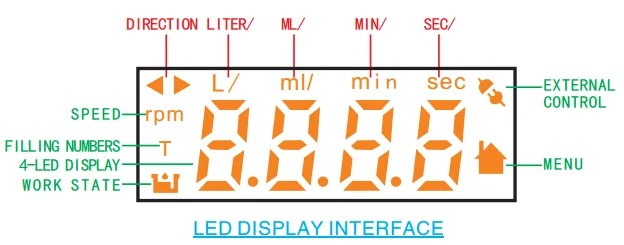

4-LED Display With Speed And Flow Rate Mode


1. Speed Mode: Easy operate to control the flow rate of the peristatic pump. (Standard)


2. Flow Rate Mode: With calibration funtion, suitable for most precise pump.



For the 'easy operate', we suggest to use the speed mode.

Features of peristaltic pumps:

1. Non-pollutinon

2. No need cleaning

3. Low shear force

4. Maintenance convenient

5. Wide application

Technical Parameters
Speed range
0.1~300rpm, reversible
Speed resolution
0.1rpm
Flow rate range
0.007~1140ml/min
Flow error
<0.5%
Speed control mode
Digital rotary knob to adjust the speed
Display mode
4-digit LED display double mode-speed and flow rate
Power supply
AC220V±10% (Standard) / AC110V±10% (Optional)
Power
<35W
External control interface
Start/stop, direction, speed control (0-5V, 0-10V, 4-20mA optional)
RS485 serial communication

Work environment
Temperature 0 to 40℃, relative humidity<80%, no condensation
Drive size
234*154*144 (mm)
Drive weight
4.1kg
IP rate
IP31
Drive
Pump head
Tubing
Flow rate (mL/min)




BT300M
YZ1515x
13# 14# 19# 16# 25# 17# 18#
0.007~1140
YZ2515x
15# 24#
0.17~870
N*YZ1515x
13# 14# 19# 16# 25# 17# 18#
0.007~1140 per channel
N*YZ2515x
15# 24#
0.17~870
per channel
Functions & Features

1. Applicable pump heads: YZ1515x, YZ2515x.

2. Two ways of changing flow speeds: by hand rotary knobs or automatic control with external controller interface.

3. Switching knobs excel membrane keypad in reducing failure rates during the operation.

4. FULL SPEED button available for filling in & emptying out quickly.

5. Memory function available in case of power off.

6. Good capability price rate.

7. Not suitable when used in the open air.

Order Guide

Dear All,

Welcome to our website, wish you have a nice day and will get the harvest from us.

In order to help you choose the most suitable pump, pls kindly help us to confirm the following details at first, tks in advance!

1. What's the application of the pump? Bottle filling or constant transfer?

2. What kind of liquid you will transfer? Is it corrosive? Can it flow as water?

3. For constant transfer, what's flowrate you need? (ml/min)

4. For bottle filling, what's your bottle's volume? (ml) How many bottles you want to filling in 1 min?

Pls kindly inform us the above answers or most details if u can, and then we will choose the best pump and tube for u.


Thanks & best regards,

Wendy Song


Typical Application

1. Accurate measurement and ration feedstock, it could reach highest precision.

2. Transfer viscous liquid (with YZ2515x pump head).

3. In food and medical care via changing the tube and material.



Application

Commercial Dishwashing / Chemical Dispensing-Vending Machine / Post Mix Syrups- Beverage Dispensing / Dispense juice, chocolate, etc. Refrigeration / Condensate Removal-Analytical / Fluid Transfer, Wastes-Commercial Exercise Eqpt. / Lubrication-Grease Trap Control / Timed Dispense of Enzymes-Fluid Sampling / Water Sampling, DC Powered-Water Conditioning / Chlorination/PH control.




Baoding chuangrui precision pump Co., Ltd was founded in 2006, is now mainly engaged in the peristaltic pump research and development, production, marketing and related fluid precision control of the stepper motor, drives, controller of research and development, production and sales. Enterprise covers an area of more than 1000 square meters of modern production workshop, more than 50 sets of production equipment. At present, we have succeeded in bringing the ARM, DSP, FPGA, CPLD technology application in the research and development of new products, such as improving the comprehensive performance of the product.





Our Services

1. Our peristaltic pump with1 year warrenty and lifetime repair.

2. We can do the OEM PERISTALTIC PUMP according to your special requirements.


Certifications

Packing & Shipping

Selling Units: Single item

Single Package Size: 40*28*25 cm

Single Gross Weight: 8.0kg

Package Type: Export carton

FAQ

Question 1: Can I order custom peristaltic pump with my own design & logo?

Answer: Definitely yes!



Question 2: Can I order a sample first before mass production? How can I place a sample order?

Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.



Question 3: How soon can I get a sample made? How can I make payment?

Answer: For simple design sample, it generally takes about 7~15days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test, etc. Payment can be made through T/T, paypal, Western Union, etc.



Question 4: How can I get my peristaltic pump if I place the order to you?

Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express ( DHL, Fedex, etc.). 100 or more, mostly by air or by sea.

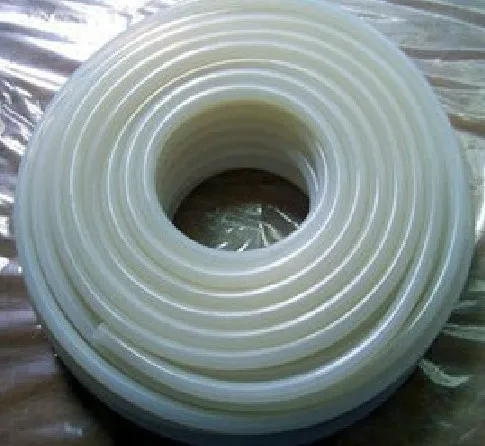

Question 5: Can I buy the tube separately?

Answer: Of course Yes. For the silicon tube 15meter per roll. Or you can buy 1 or 2 meters. No problem.

More question, pls contact Wendy Song.
