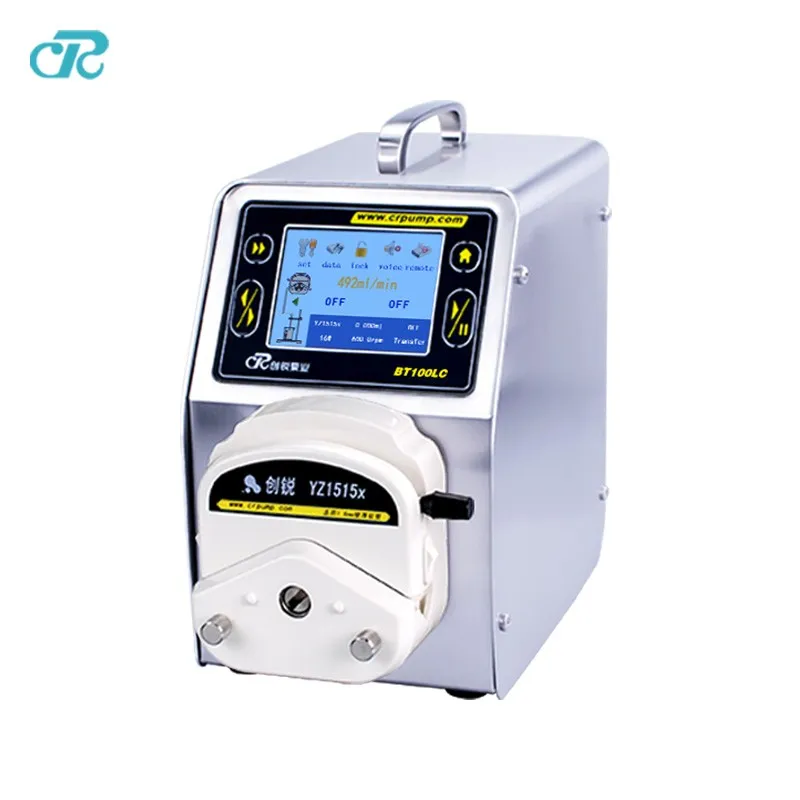

Touch screen control peristaltic pump liquid transfer machine

FOB Reference Price:Get Latest Price
$360.00 - $580.00 / Sets | 1 Set/Sets (Min. Order)
Horsepower:
<22W
Maximum Flow Rate:
380ml/min
Maximum Head:
5--10m
Customization:
Customized logo (Min. Order: 10 Sets)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Chuangrui
Model Number:
BT100LC
Structure:
peristaltic pump
Usage:
transfer water, oil, drug, liquid etc.
Application:
transfer liquid, Touch screen liquid transfer
Power:
<22w
Fuel:
electric
Pressure:
Low Pressure
Theory:
transfer peristaltic pump
Pump head:
YZ1515X
Speed:
0.1-100rpm
Flowrate:
0.0015-380ml/min
Pump head material:
PPS/PESU
Power supply:
AC220V/110V
Display:
4-LED
IP rate:
IP31
Tube:
13# 14# 19# 16# 25# 17# 18#
Supply Ability
Supply Ability:
3000 Set/Sets per Month
Packaging & Delivery
Packaging Details
1. The peristaltic pump is carton with plastic foam.
2. The peristaltic pump can also be packed strictly according to the customer's requirements.
Port
Beijing, Xingang, Guangzhou, Qingdao
Product Description

Touch screen control peristaltic pump liquid transfer machine

CR Peristaltic pump

Flowrate: 0.007-380 ml/min

Automatic dosing system

Water treatment system

Laboratory precision transfer

Product Features

With 3.5 inches capability enables products to transfer more accurate flow rates.

Four models of operation: transfer mode, timing mode, quantitative mode, timing quantitative mode,

304 stainless steel housing corrosion protection rust prevention and easy to be cleaning.

Touch screen control peristaltic pump liquid transfer machine

Model :YZ1515x pumo head

Channels : 2 channels optional

Max speed : 100 rpm .

Flow range : 0.007-380 ml/min

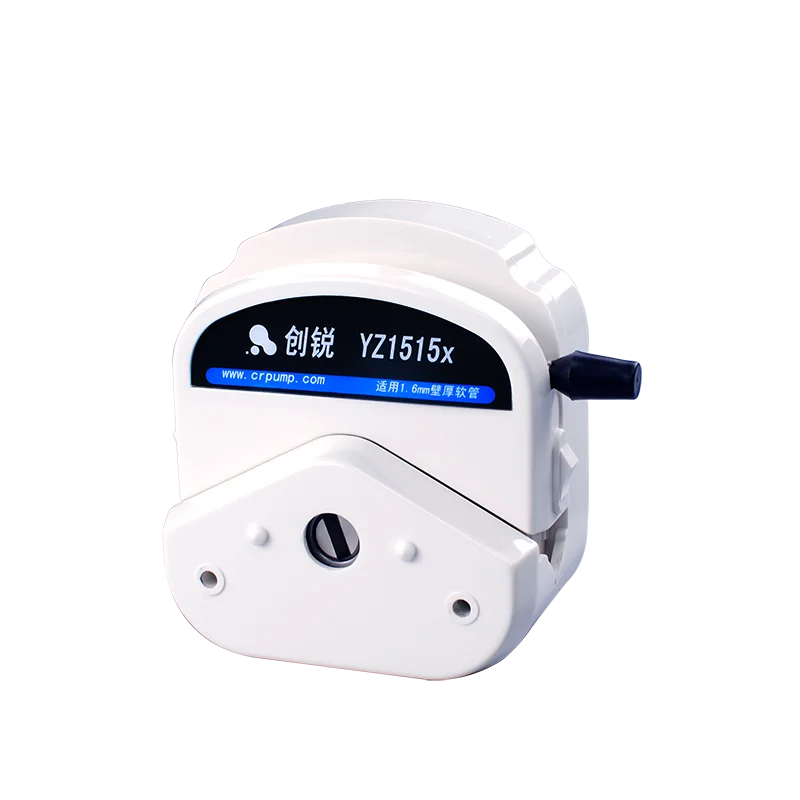

peristaltic pump head

Pump head: YZ1515x
Material of pump head: PPS/PESU
Silicone tube: 13# 14# 19# 16# 25# 17# 18#

★Technical Parameter
Drive model
BT100LC
Speed
0.1-100rpm is reversible
Power consumption
<50W
Speed resolution
0.1rpm
Display
LCD screen
Drive dimension
212*135*240(mm)
Speed control mode
Touch screen control
Power supply
AC220V±10%(standard) or AC110V±10%(optional)
Work environment
Temperature 0-40℃, relative humidity, no condensation
Timing range
0.1s-9999min
Quantitative range
0.001ml-9999L
External control
Start&stop, direction control, speed control(0-5v,0-10v,4-20mA optional)
Communication Interface
RS232 and RS485, support MODBUS protocol mode
Suction angle
10°-720°(1°stepping)

Tube material: Platinum vulcanized silicone.


Food Grade Silicone Tube For Liquid Transfer

Medical Grade Peristaltic Pump Silicone Tubing pipe hosing


Peristaltic hose pump application

One of our customer who display this peristaltic hose pumpon on the exhibition

advantage :

1, Peristaltic pump hose with FDA certification .Clean and hygienic. and easy to change ,reduce the maintenance of the peristaltic hose pump .

2, the pump easy operate .

Specifications
Chuangrui basic type lab peristaltic pump  Speed 0.1- 100 rpm reversible

Model "  BT100LC/YZ1515x can run with 7 different size tube .

flow  range   0.007-380 ml/min

Model " BT100LC/YZ2515x can run with 2 different size tube .
flow range 0.17-290 ml/min



Tube For pump head MODEL ; YZ1515x
Tube
ID(mm)
Wall thickness(mm)
OD(mm)
Flow rate ml/min
13#
0.8
1.6
4
0.007-7
14#
1.6
1.6
4.8
0.027-27
19#
2.4
1.6
5.6
0.051-51
16#
3.1
1.6
6.3
0.082-82
25#
4.8
1.6
8
0.17-170
17#
6.4
1.6
9.6
0.29-290
18#
7.9
1.6
11.1
0.38-380
Tube for peristaltic pump head   YZ2515x
Tube
ID(mm)
Wall thickness(mm)
OD(mm)
Flow rate(ml/min)
15#
4.8
2.4
9.6
0.17-170
24#
6.4
2.4
11.2
0.29-290
Order guide

In order to give our costomers the most suitable configuration of peristaltic pump, may I know some details as below:

1,what's the application of the pump ? bottle filling or constant transfer ?

2,what kind of liquid you will transfer ? does it corrosive ? does it can flow as water ?

3, for bottle filling ,what's your bottle's volume ? ml How many bottles you want to filling in 1 min ?

4, for constant transfer ,what's flowrate you need? ml/min

Pls send these answers or most details to us, then we will help u to choose the best pump and tube .

Thanks for your time .

Related Products

BT100LC/DG

      Flow range : 0.0015-36 ml/min


BT300LC/YZ1515x

Flow range : 0.007-1140 ml/min


BT600LC/YZ1515x

Flow range : 0.007-2280 ml/min


BT100M/YZ1515x

       flow range : 0.007-380 ml/min


BT300M/YZ1515x

  Flow range : 0.007-1140 ml/min


BT600M/YZ1515x

 Flow range : 0.007-2280 ml/min


Why choose us

Baoding chuangrui precision pump Co., Ltd Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump ..


We aim to "Produce CR pump to the easier life "

With 10 years professional experience of peristaltic pump/peristaltic hose pump/lab peristaltic pump/industrial peristaltic pump/peritaltic dosing pumpemical dosing pump/peristaltic filling pump/dispensing peristaltic pump/OEM peristlatic pump/ liquid transfer pump etc. . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, filling pump & system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.

We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field. Our professional team can insure fluent communication, as well as perfect after-sale service Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.


FAQ

We have professional support teams to assist with any queries you may have.
Some frequently asked questions can be found below, however please do not hesitate to contact us with any specific questions.

Question 1: Can I order custom peristaltic pump with my own design & logo?

Answer: Definitely yes.

Question 2: Can I order a sample first before mass production? How can I place a sample order?

Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.

Question 3: How soon can I get a sample made? How can I make payment?

Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.

Question 4: How can I get my peristaltic pump if I place the order to you?

Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.


Question 5: Can I buy the tube separately?

Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.
